MAXUS ARC 500 PRIME
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
ARC Welders (MMA)

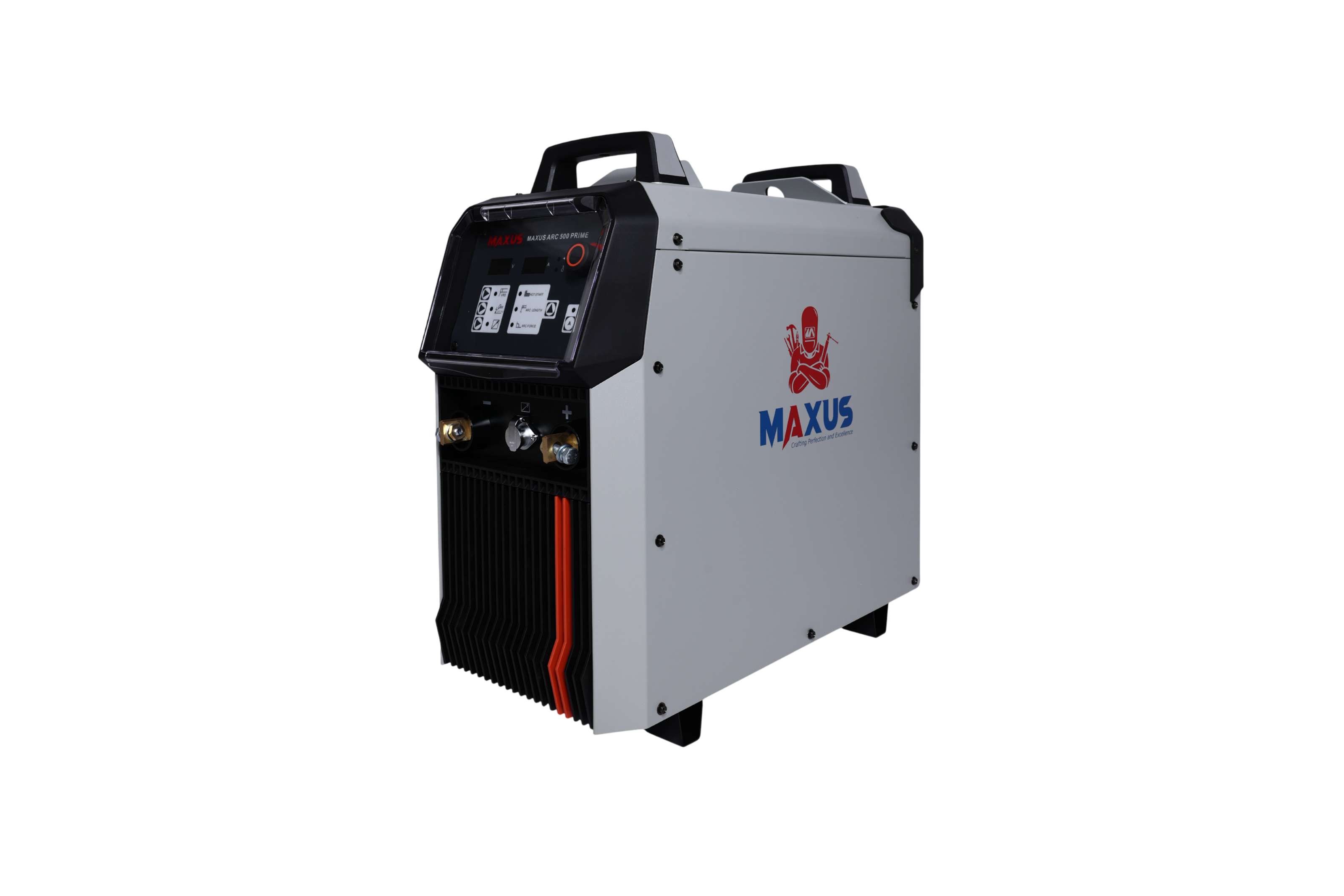

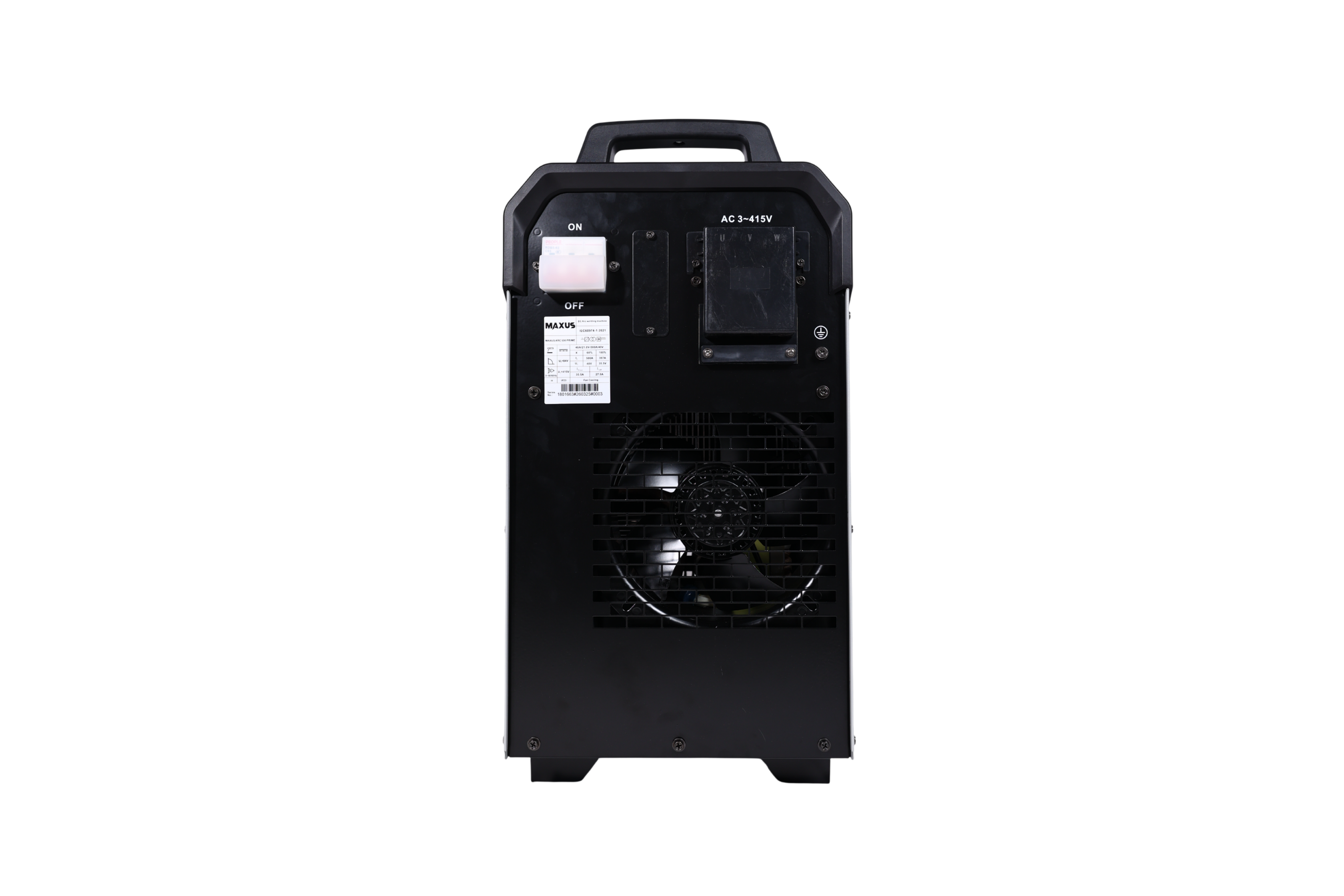

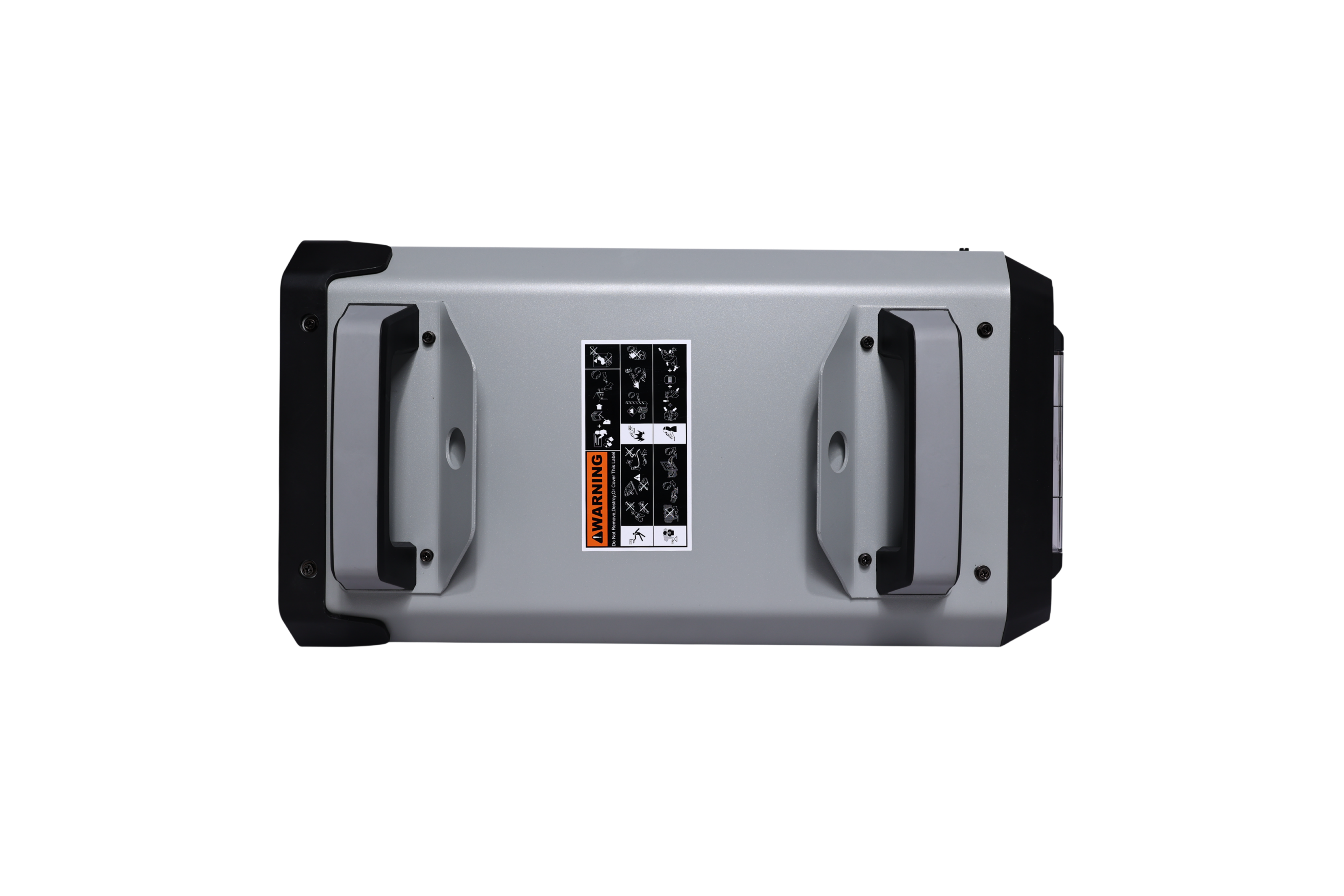

MAXUS ARC 500 PRIME

The Maxus ARC 500 Prime is widely applied in the petrochemical and power construction industry for pressure vessel manufacturing. It features a factory-calibrated current and voltage display with an error of less than ±2.5 %.

Technical Specifications

Input Voltage 3P 415V Input
Current Range 30-500A Range
System Feature 44.6 Kg Weight
System Feature Intelligent Cloud Management

Machine Specifications

Model Range Maxus Arc 500 Prime
Input Voltage 415V 3ph 50/60Hz
Input Current 38A
Open Circuit Voltage 78V
Welding Current 30~500A
Duty Cycle (40° C) 60%@500A
Insulation Class H
Protection Class IP23S
Dimensions: (L*W*H) 658*320*645
Weight 44.6 Kg
Socket Type Lug type

Key Features

  • Supports continuous welding with φ5.0 mm electrodes
  • Supports Lift TIG welding
  • Supports remote control operation
  • Enables cloud-based intelligent welding management
  • Provides long-term value

Customer Benefits

  • Increases productivity
  • Produces cleaner welds
  • Minimizes machine downtime
  • Supports continuous welding operations
  • 2-year warranty

Applications

Heavy structural steel fabrication Industrial manufacturing facilities Engineering workshops Power plants and utility projects Metal processing and component manufacturing
