MAXUS ARC 200 MINI
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
ARC Welders (MMA)

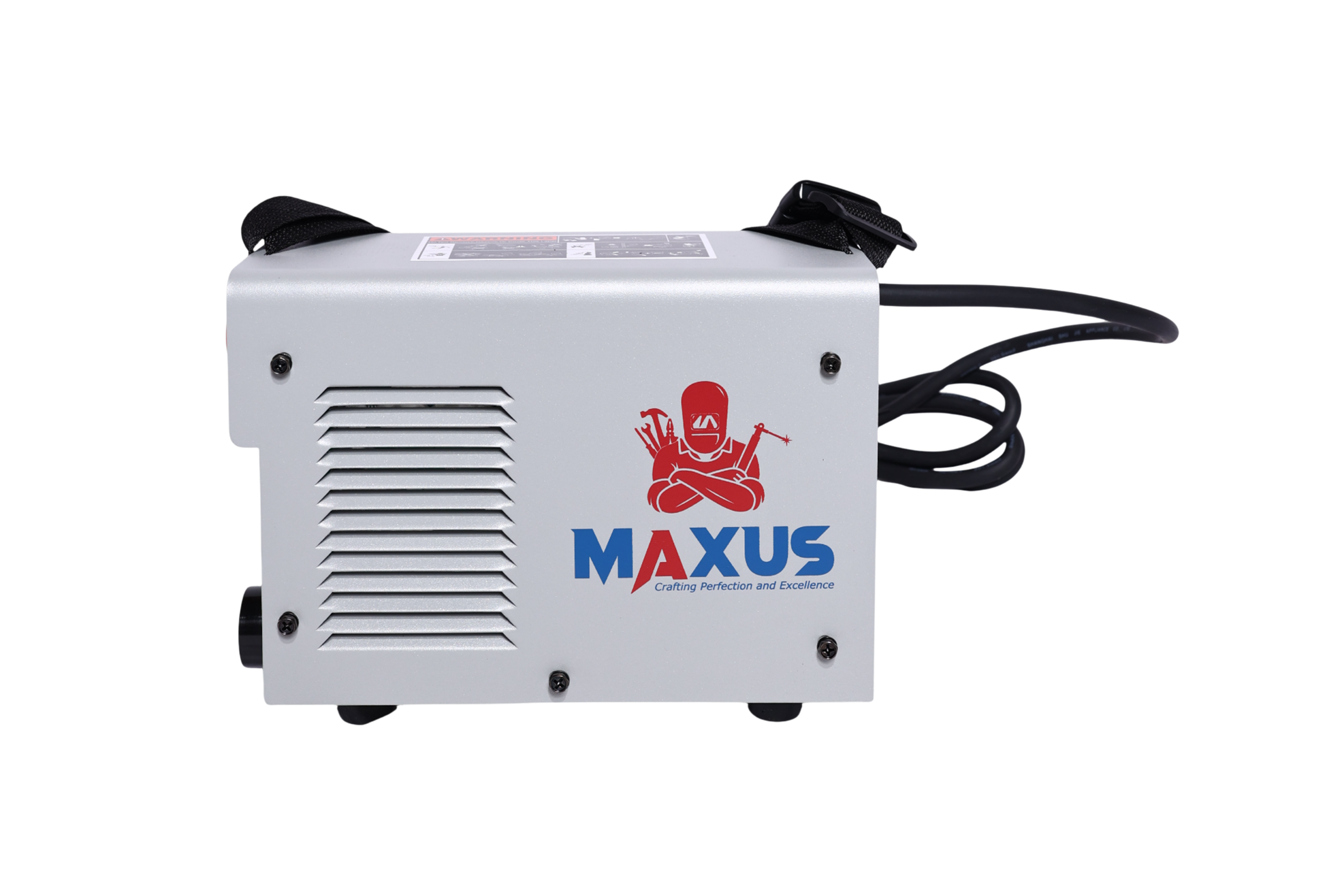

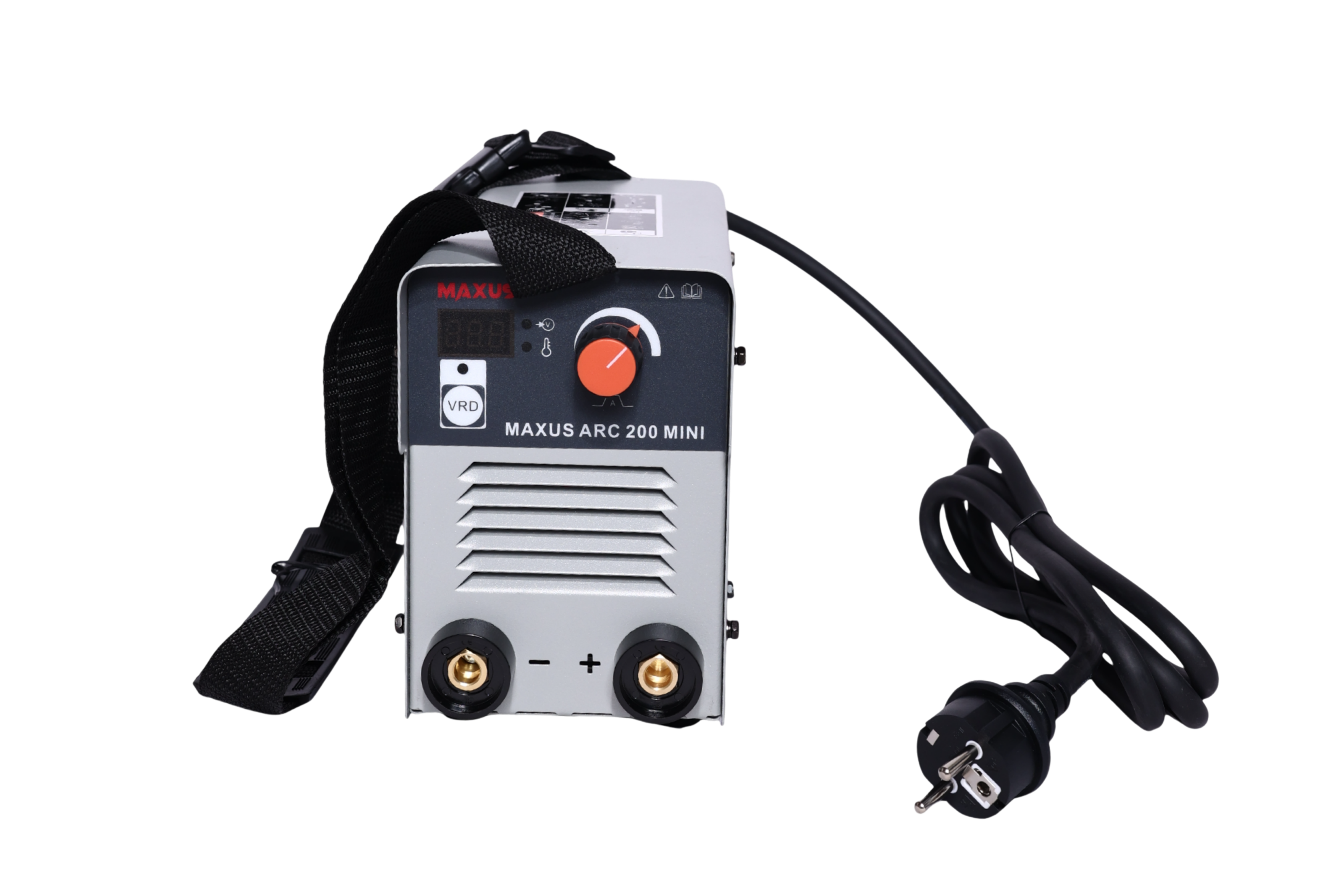

MAXUS ARC 200 MINI

The Maxus ARC 200 MINI is a lightweight, high-performance inverter arc welding machine for improved welding performance. It is a single-phase DC inverter sourced with Constant Current (CC) for providing the best combination of portability, power, and convenience.

Technical Specifications

Input Voltage 220V AC Input
Current Range 30-200A Range
Current Range Approx. 3.6 kg
System Feature VRD Integrated

Machine Specifications

Model Range Arc 200 MINI
Input Voltage 220V AC ±15%, 50/60 Hz
Input Current 30A
Open Circuit Voltage 96V
Welding Current 30–200 A
Duty Cycle 35%@140A
Load Voltage 25.6V
Insulation Class H
Protection Class IP21S
Dimensions (L*W*H) 246*114*167 mm
Weight Approx. 3.6 kg

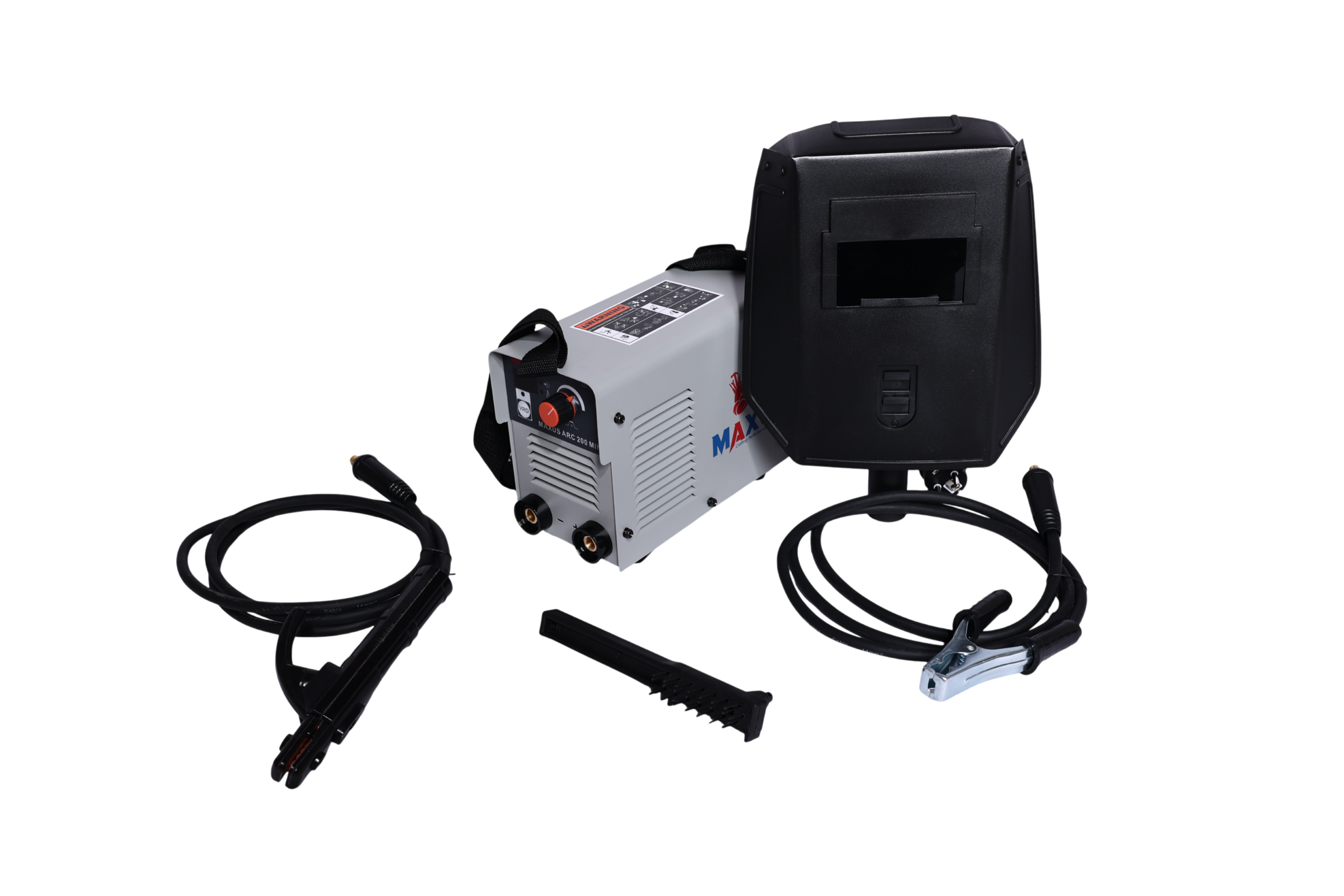

Package Contents

  • Hammer with a brush
  • Hand-held helmet
  • Electrode holder with a 2-meter cable
  • Earth clamp with a 2-meter cable

Key Features

  • VRD Voltage reduction device
  • Built-in cooling fan with thermal protection
  • Durable metal body design suitable for industrial environments
  • Smooth arc ignition with minimal spatter
  • Compatible with a wide range of digital displays

Customer Benefits

  • Easy to transport and operate
  • Improves equipment lifespan and ensures safe finishing
  • 1-year warranty included

Applications

Steel & Metal Fabrication Repair and Maintenance Construction & Infrastructural Projects Automotive Industry On-site Installation
