MAXUS ARC 250 PRIME
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
ARC Welders (MMA)

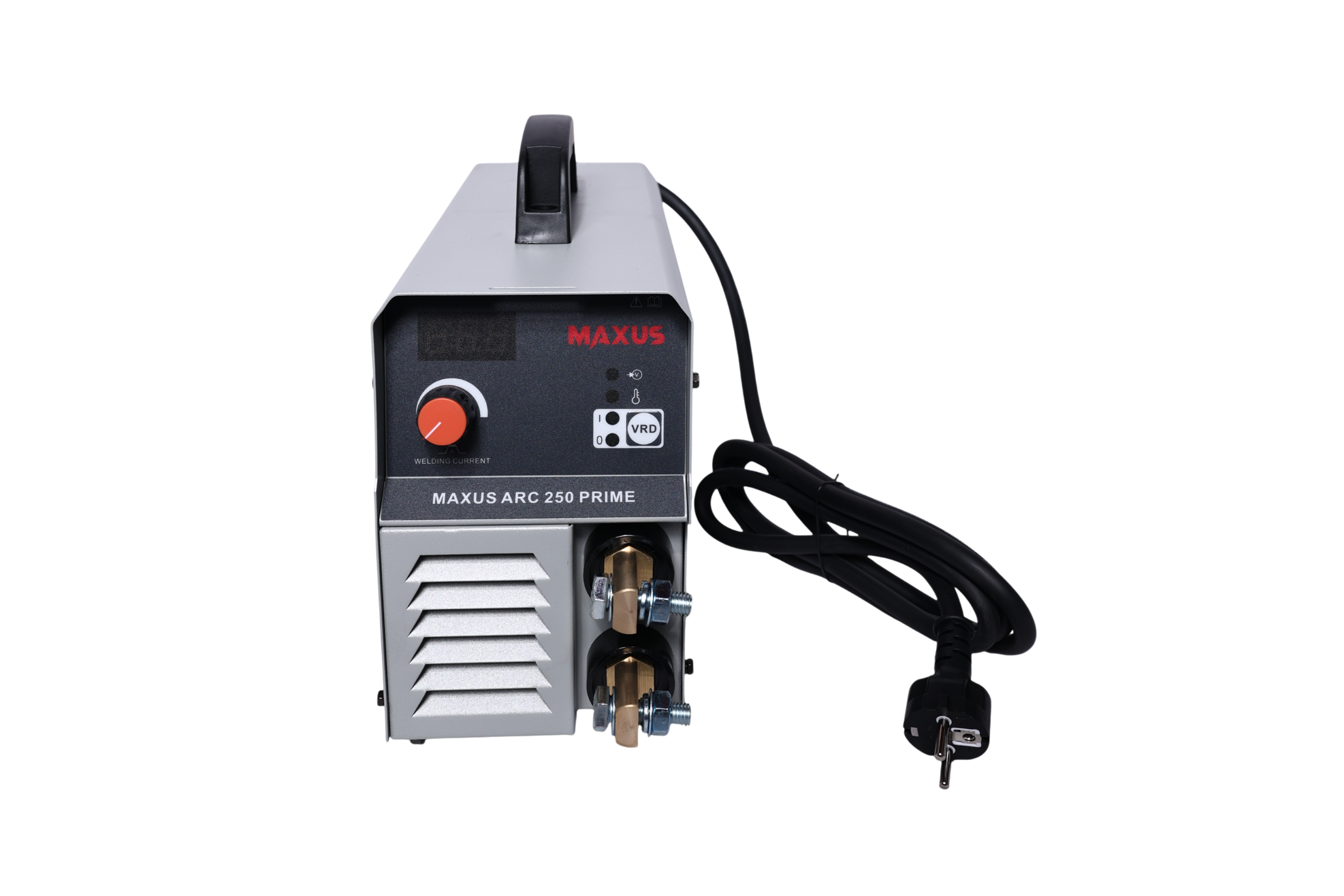

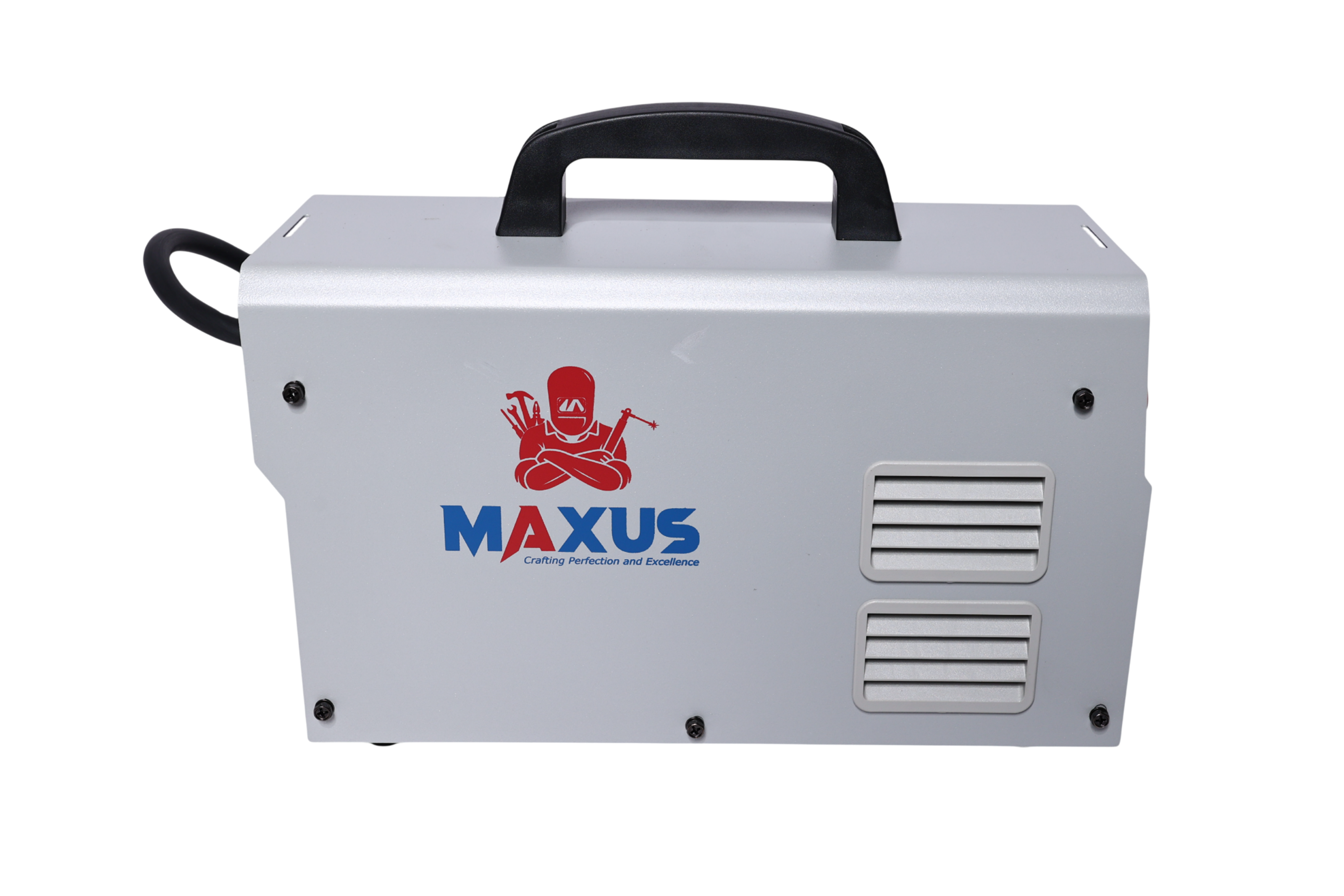

MAXUS ARC 250 PRIME

The Maxus ARC 250 Prime is a single-phase DC inverter MMA welding machine engineered for demanding fabrication applications. Powered by advanced IGBT inverter technology, it acts as an efficient welding arc across a wide range of applications.

Technical Specifications

Input Voltage 220V 1ph Input
Current Range 30-250A Range
System Feature 5.7 Kg Weight
System Feature IGBT Inverter Tech

Machine Specifications

Model Range Maxus Arc 250 Prime
Input Voltage 220V 1ph 50/60Hz
Input Current 48.8A
Open Circuit Voltage 103V
Welding Current 30~250A
Duty Cycle (40° C) 35%@200A
Load Voltage 28V
Insulation Class H
Protection Class IP21S
Dimensions (L*W*H) 344*130*260
Weight 5.7 Kg
Socket Type Lug Type

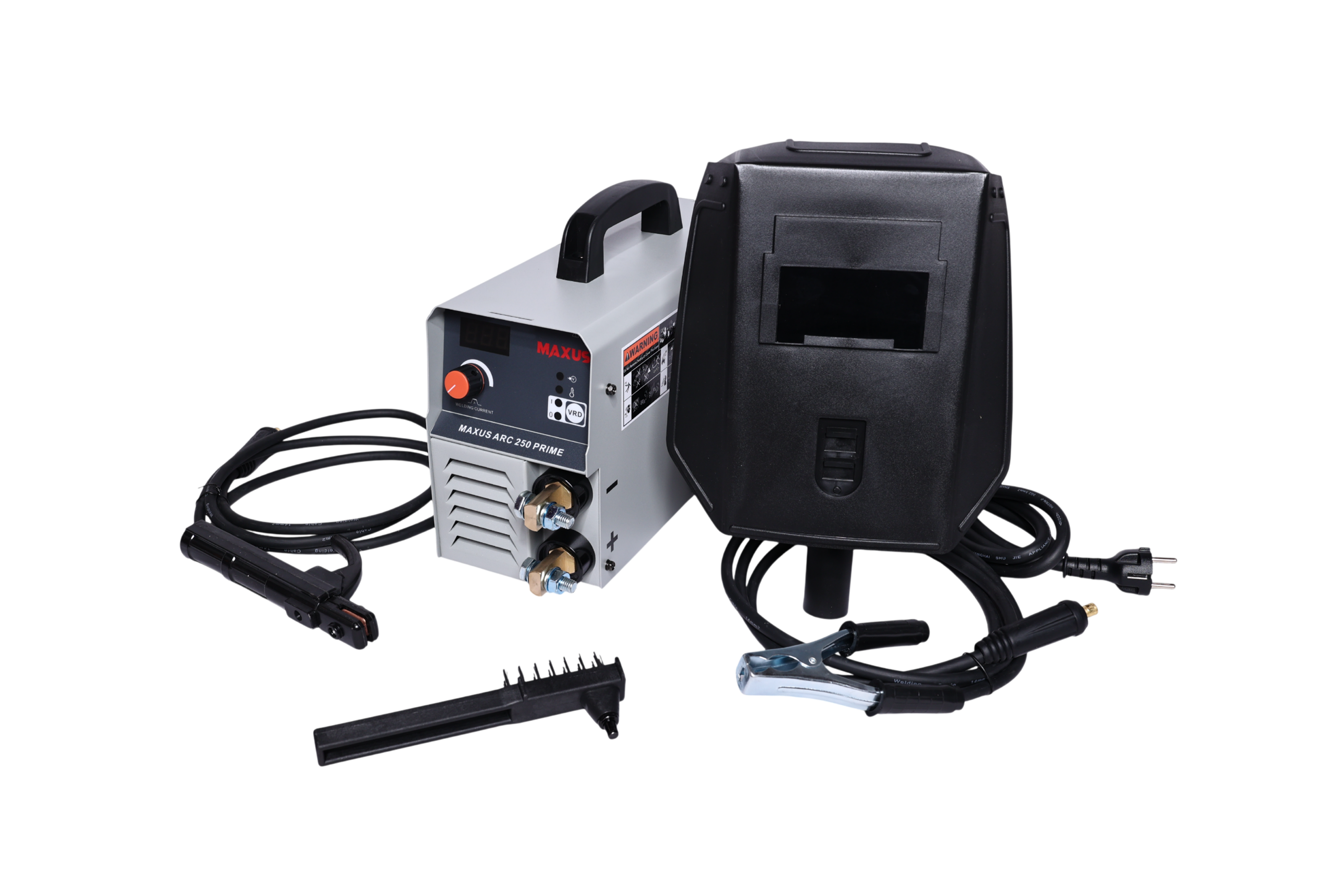

Package Contents

  • Hammer with a brush
  • Hand-held helmet
  • Electrode holder with a 2-meter cable
  • Earth clamp with a 2-meter cable

Key Features

  • High output for demanding environments
  • Stable arc with smooth ignition
  • Hot start function for effortless arc striking
  • VRD voltage reduction device
  • Suitable for STICK and touch start TIG welding applications

Customer Benefits

  • Minimizes downtime with built-in safety features
  • Reduces the likelihood of breakage
  • Extends service life in hard environments
  • Allows easy cable pulling
  • 1-year warranty

Applications

Residential electric wiring Commercial office buildings Educational Institutions Warehouses Manufacturing plants
