MAXUS ARC 400 PRIME
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
ARC Welders (MMA)

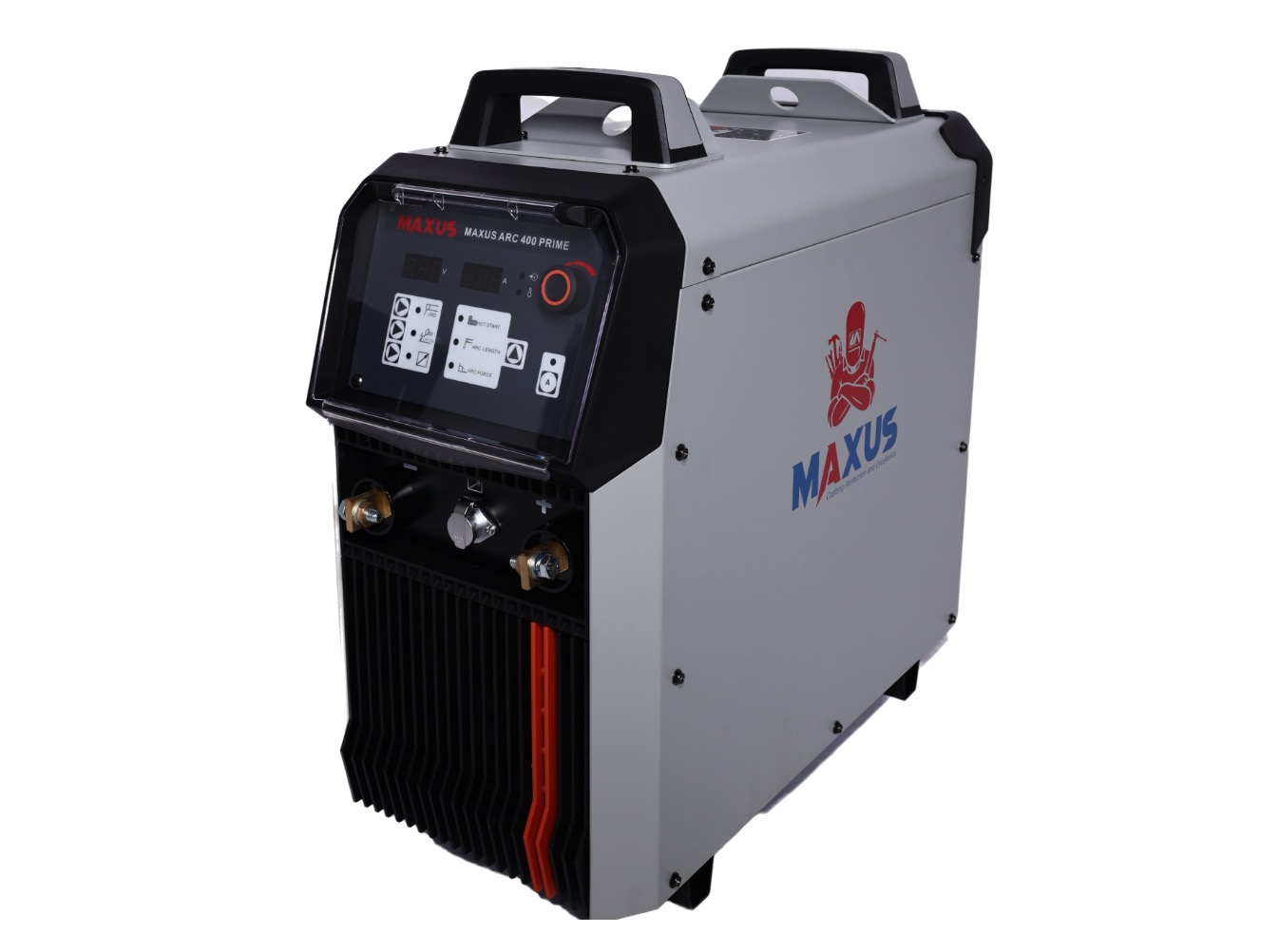

MAXUS ARC 400 PRIME

The Maxus ARC 400 PRIME is equipped with hot start and arc force to maintain arc length control functions. It is suitable for welding with acid, stainless steel, and low-hydrogen electrodes, etc., and can be extended up to 200 meters.

Technical Specifications

Input Voltage 3P 415V Input
Current Range 30-400A Range
System Feature 44.6 Kg Weight
System Feature Factory-Calibrated Panel

Machine Specifications

Model Range Maxus ARC 400 PRIME
Input Voltage 415V 3ph 50/60Hz
Input Current 26.7
Open Circuit Voltage 77V
Welding Current 30~400A
Duty Cycle (40° C) 80%@400A
Insulation Class H
Protection Class IP23S
Dimensions (L*W*H) 658*320*654 mm
Weight 44.6 Kg
Socket Type Lug type

Key Features

  • Factory-calibrated current and voltage display
  • Supports Lift TIG welding and remote control operation
  • Equipped with anti-shock protection devices
  • Optional wired or wireless communication modules
  • Ergonomic design for easy handling

Customer Benefits

  • Ensures consistent weld quality
  • Reduces energy consumption
  • Minimizes maintenance requirements
  • Delivers dependable performance
  • 2-year warranty

Applications

Steel furniture & metal manufacturing Industry machinery production General-purpose heavy-duty welding Power generation Utility maintenance
