MAXUS ARC 400
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
ARC Welders (MMA)

MAXUS ARC 400

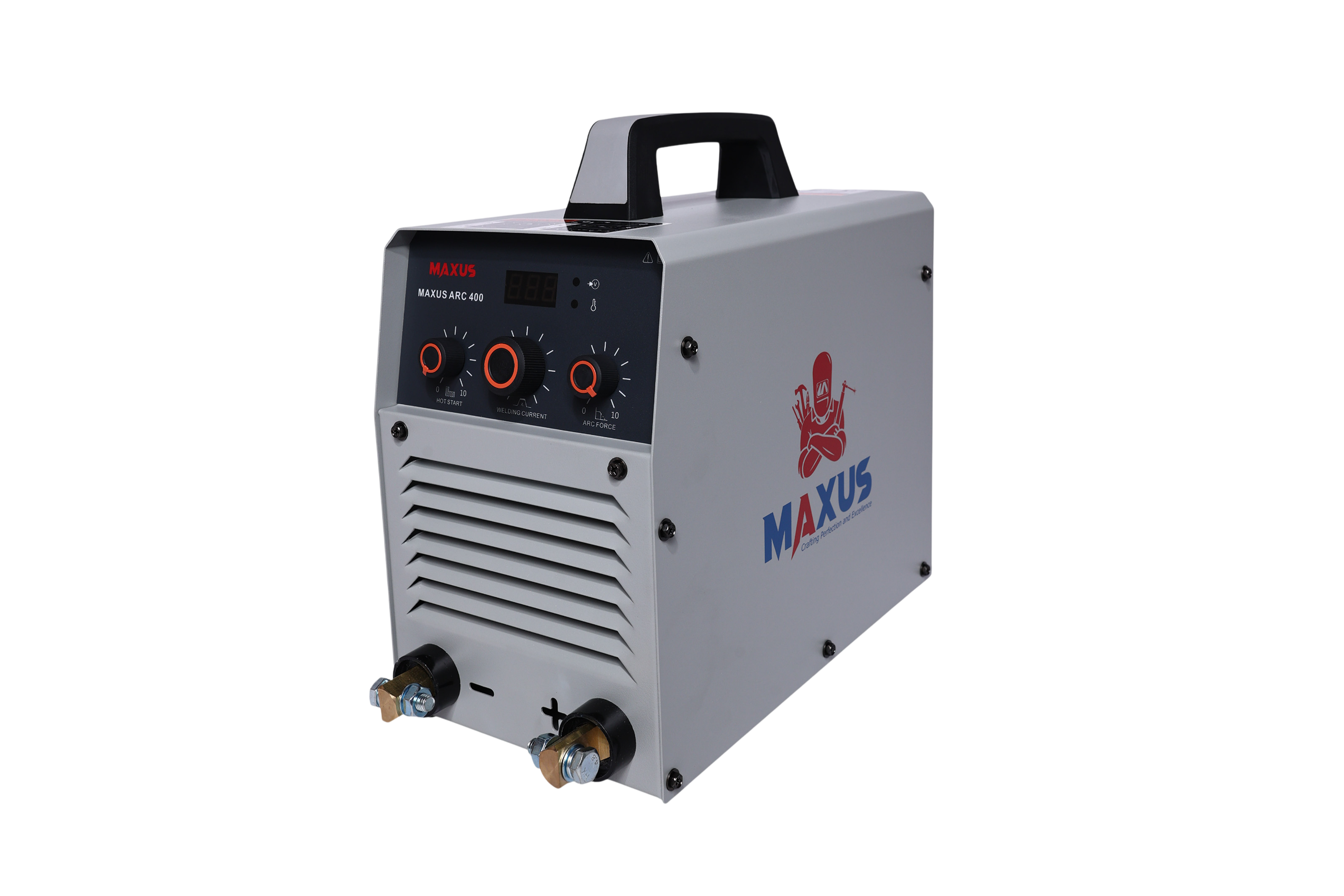

The Maxus Arc 400 is a heavy-duty arc welding machine for 1-phase and 3-phase, voltage-adaptive functionality. It’s designed for high-current manual welds. It is a 32-bit digital control with built-in PWM pulse width modulation technology for accelerating excellent performance.

Technical Specifications

Input Voltage 1P 220V / 3P 415V
Current Range 30-400A Range
System Feature 11.2 Kg Weight
System Feature PWM Tech & 32-bit CC

Machine Specifications

Model Range Maxus Arc 400
Input Voltage 1~AC220V/415V± 10% / 50/60
Open Circuit Voltage 61/63
Display current 30~400A
Welding current 30~160/30~300
Duty cycle (40° C) 35%/25%
Efficiency >85/88
Insulation Class F
Protection Class IP21S
Dimensions (L*W*H) 385.5*210.5*336 mm
Weight 11.2 Kg
Socket Type Lug Type

Key Features

  • High-precision automatic temperature detection system
  • Automatic fan start and stop feature for energy saving
  • Compatible with a wide range of coated electrodes
  • Requires a low-maintenance design with easy service
  • Efficient cooling system for prolonged operation

Customer Benefits

  • Supports extended work hours
  • Allows operators to weld with different arc welding equipment in India
  • Enhances machine durability in fabrication and industrial spaces
  • With anti-stick, hot start, and arc force insulation
  • 1-year warranty

Applications

Structural steel fabrication Heavy engineering workshops Industrial fabrication units Pipe & steel fabrication General-purpose industrial welding
