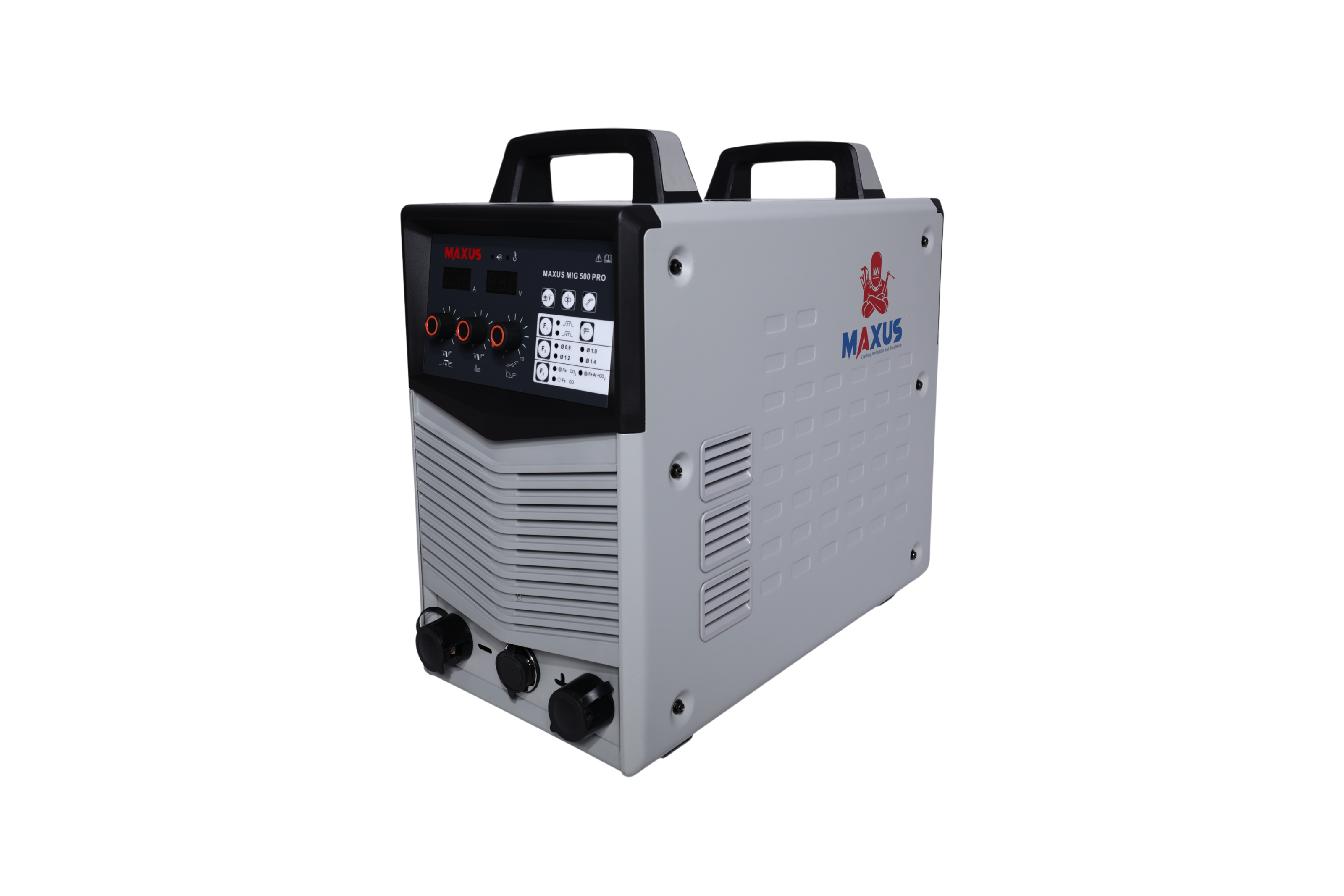

MAXUS MIG 500 PRO

Built for high-output industrial applications, the MAXUS MIG 500 PRO combines advanced digital controls, dual IGBT technology, and enhanced wire feeding to deliver powerful, stable, and continuous welding performance.

Technical Specifications

Input Voltage 3P AC415V Input
Current Range 40-500A Range
System Feature 36.1 KG Weight
Duty Cycle Heavy-Duty Industrial Output

Machine Specifications

Input Power 3~AC415V±10% / 50/60
Rated Input Current 36.5
No-load Voltage (V) 66
Output Voltage Adjustment (V) 12–50
Output Current Adjustment (A) 40–500
Duty Cycle (40°C) 60%
Efficiency (%) >88
Insulation Class H
Protection Class P21S
Dimensions (MM) 557×280×540
Weight 36.1 KG

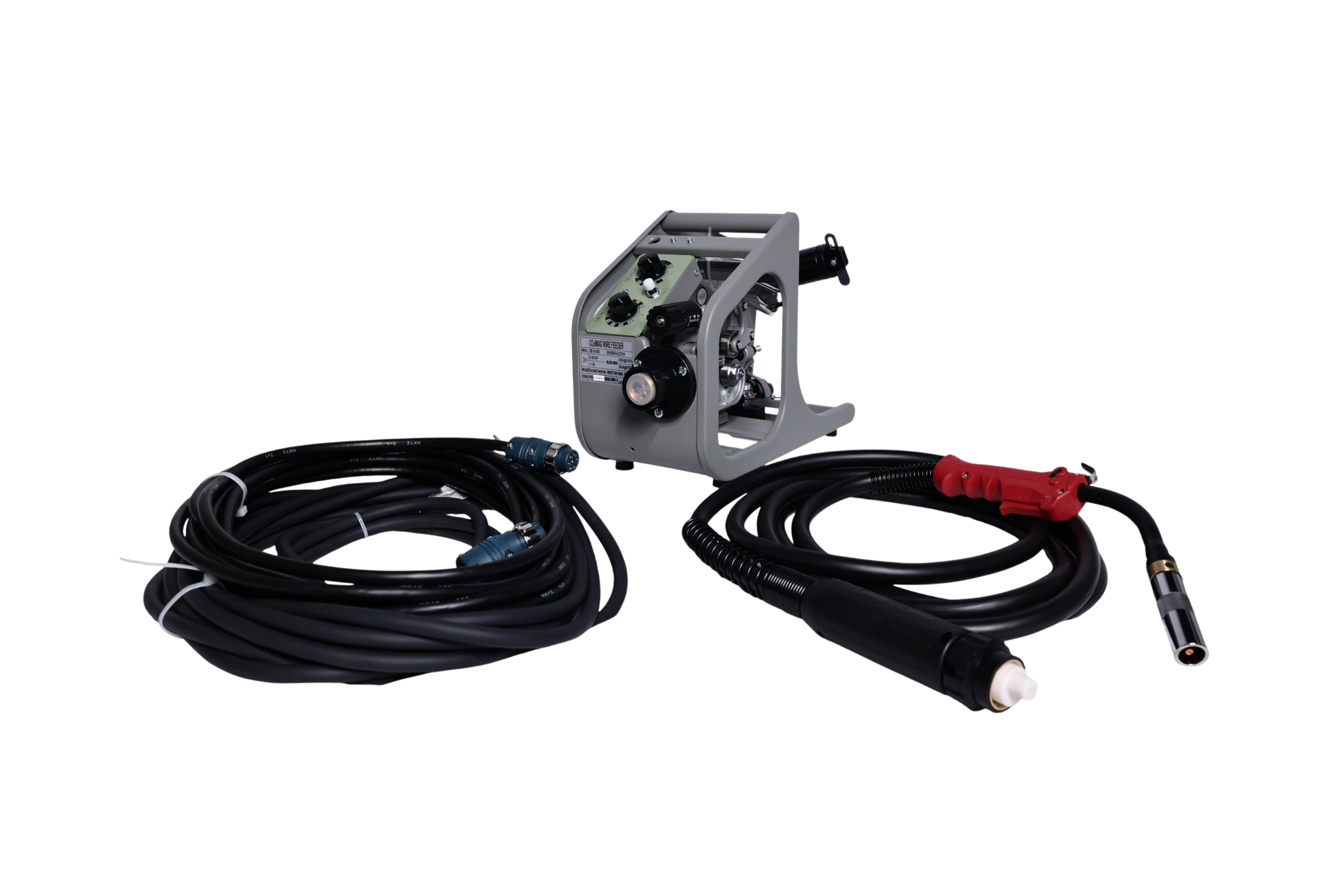

Package Contents

  • 5m MIG Gun (euro)
  • 2m, 50mm² – Ground Cable
  • Wire feeder (dual drive)
  • 10m, 50mm² – Welding cable
  • gas hose
  • control cable
  • Wire roller 1.2/1.6 – 2 pcs

Key Features

  • Advanced digital chip control
  • Dual IGBT module technology
  • Precise arc voltage feedback
  • Built-in expert parameters
  • Enhanced dual-drive wire feeder
  • High-output industrial performance

Customer Benefits

  • Supports heavy-duty fabrication projects.
  • Delivers higher welding output.
  • Ensures stable performance during continuous operation.
  • Handles demanding industrial applications.
  • Maximizes productivity with reliable operation.
  • 2-Year Warranty Included
