MAXUS MIG 315

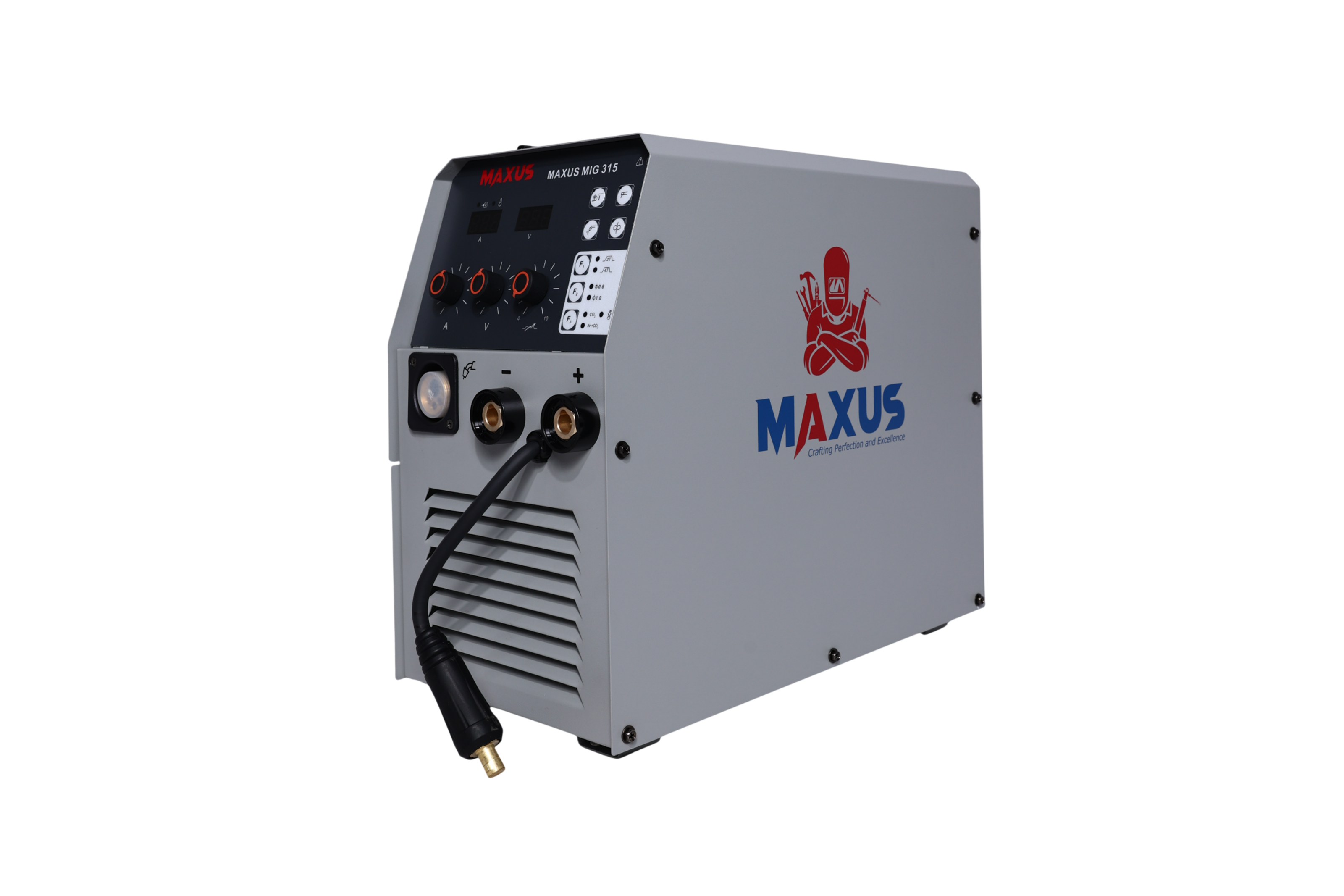

Product image thumbnail 1

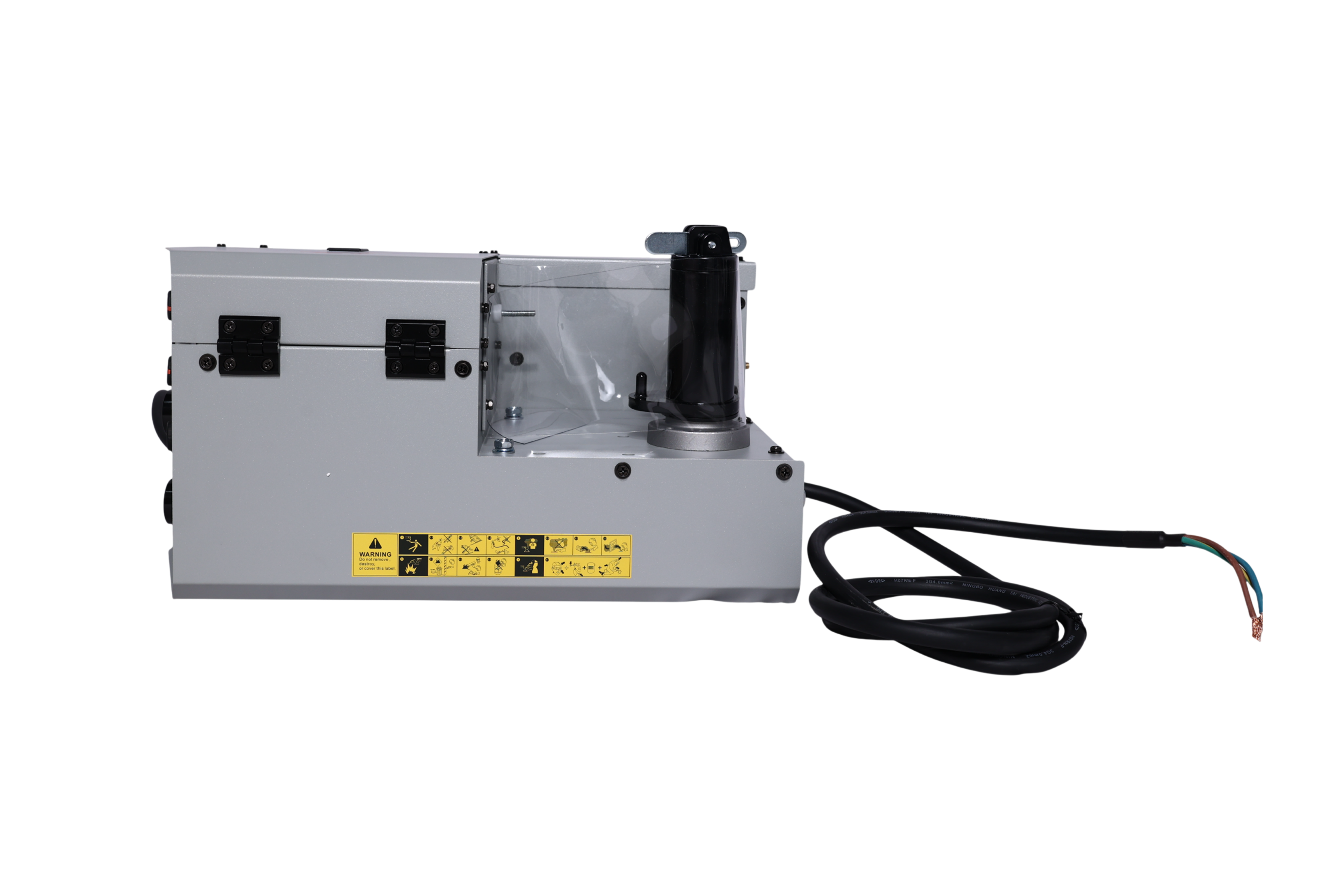

Product image thumbnail 2

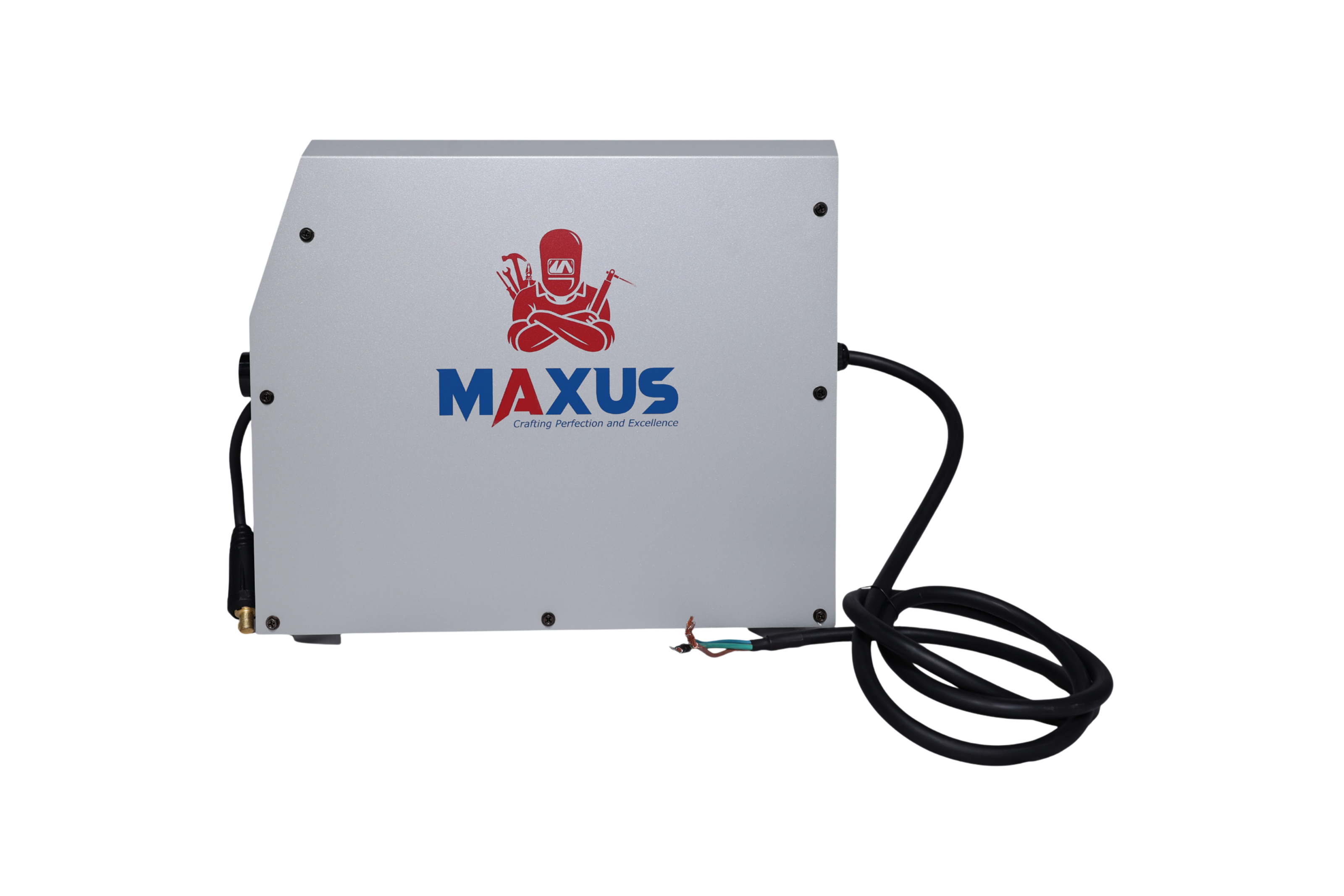

Product image thumbnail 3
Product image thumbnail 4
MIG Welders

MAXUS MIG 315

The MAXUS MIG 315 is a high-performance inverter MIG welding machine designed for precision, versatility, and efficiency. Ideal for indoor and outdoor applications; it delivers stable welding performance across diverse industrial environments.

Technical Specifications

Input Voltage 220V 1ph Input
Current Range 40-315A Range
System Feature 19 kg Weight
System Feature IGBT Inverter

Machine Specifications

Model MAXUS MIG 315
Input Power 220V, Single Phase, 50/60Hz
Rated Input Current 46 A
Output Voltage 16–25.3 V
Welding Current 40–315 A
Wire Diameter 0.8–1.0 mm
Duty Cycle (40°C) 35%
Insulation Class H
Protection Class IP21S
Dimensions (L × W × H) 514 × 273 × 503 mm
Weight 19 kg
Technology IGBT Inverter

Package Contents

  • 3m MIG Gun
  • 25mm² × 3m Ground Cable
  • 3m Gas Hos

Key Features

  • Advanced digital chip control for precise current and voltage regulation.
  • Supports self-shielded flux-cored and standard MIG welding wires.
  • Wide current and voltage adjustment with accurate preset settings.
  • Compact, ergonomic design with a single-handle grip for easy portability.
  • Performs efficiently for both indoor and outdoor welding applications.

Customer Benefits

  • Consistent, high-quality welds with every operation.
  • Supports a wide range of industrial welding applications.
  • Easy to carry and operate across job sites.
  • Stable arc performance for enhanced welding precision.
  • Energy-efficient operation helps reduce power costs.
  • 2-Year Warranty Included
