MAXUS CUT 160M

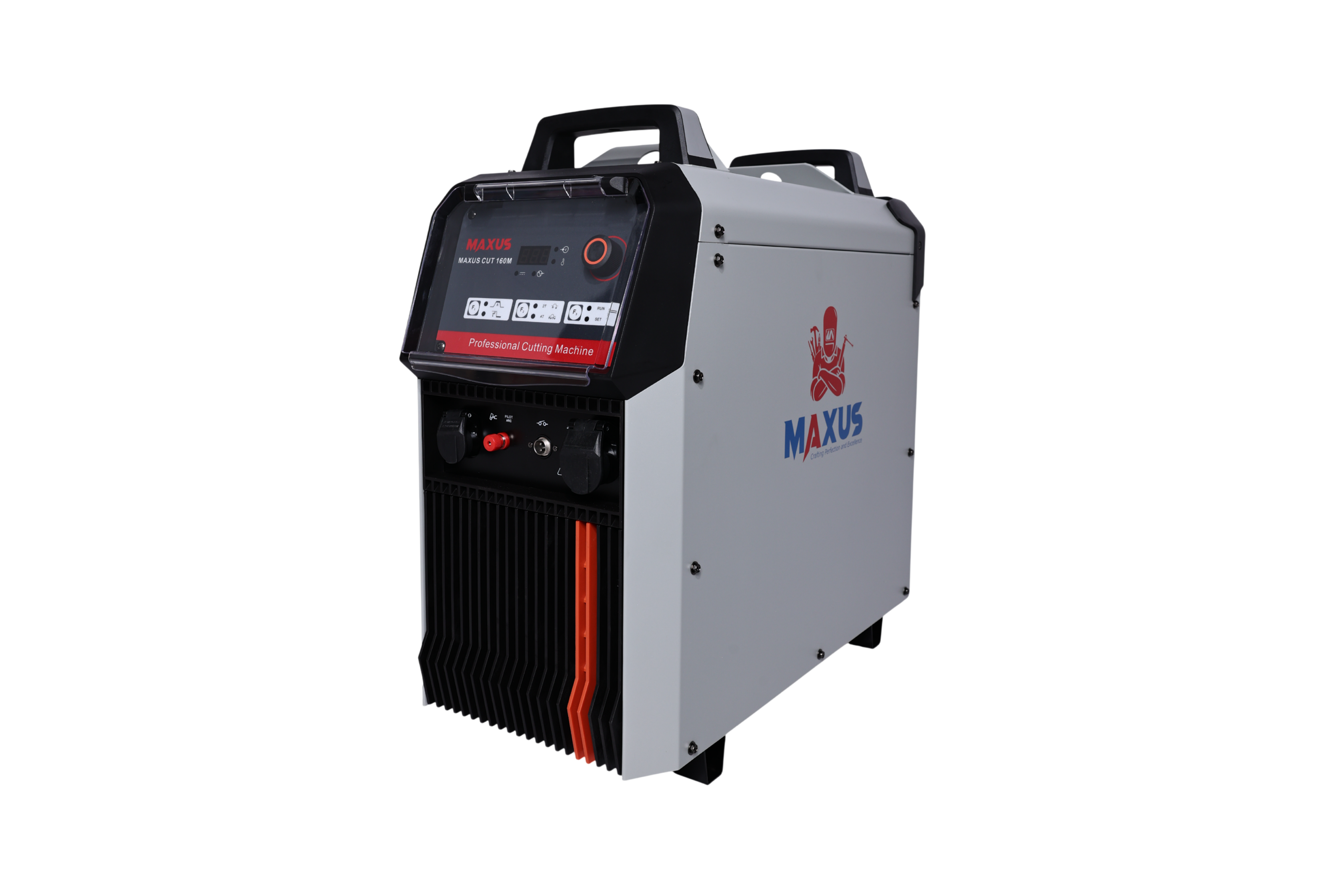

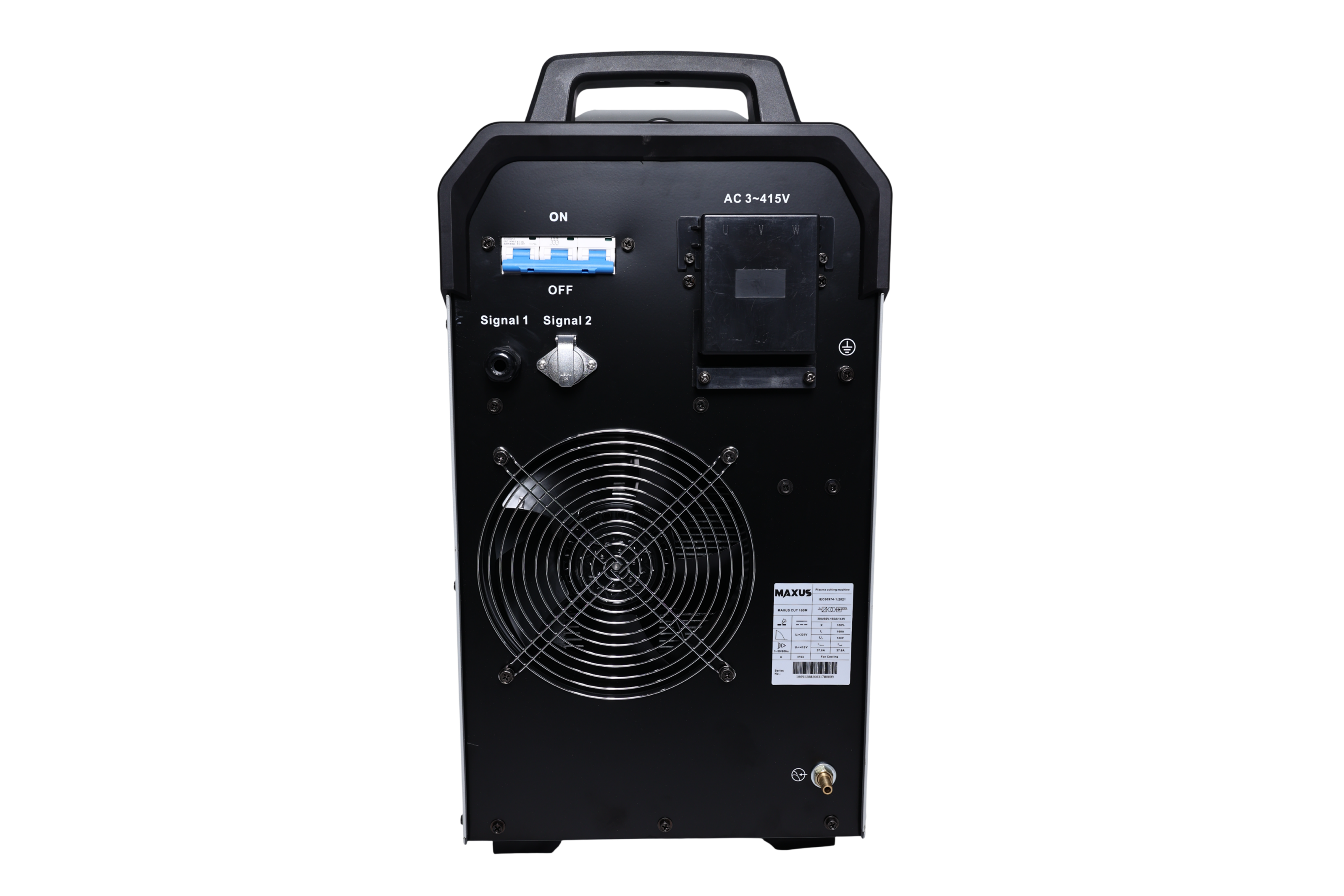

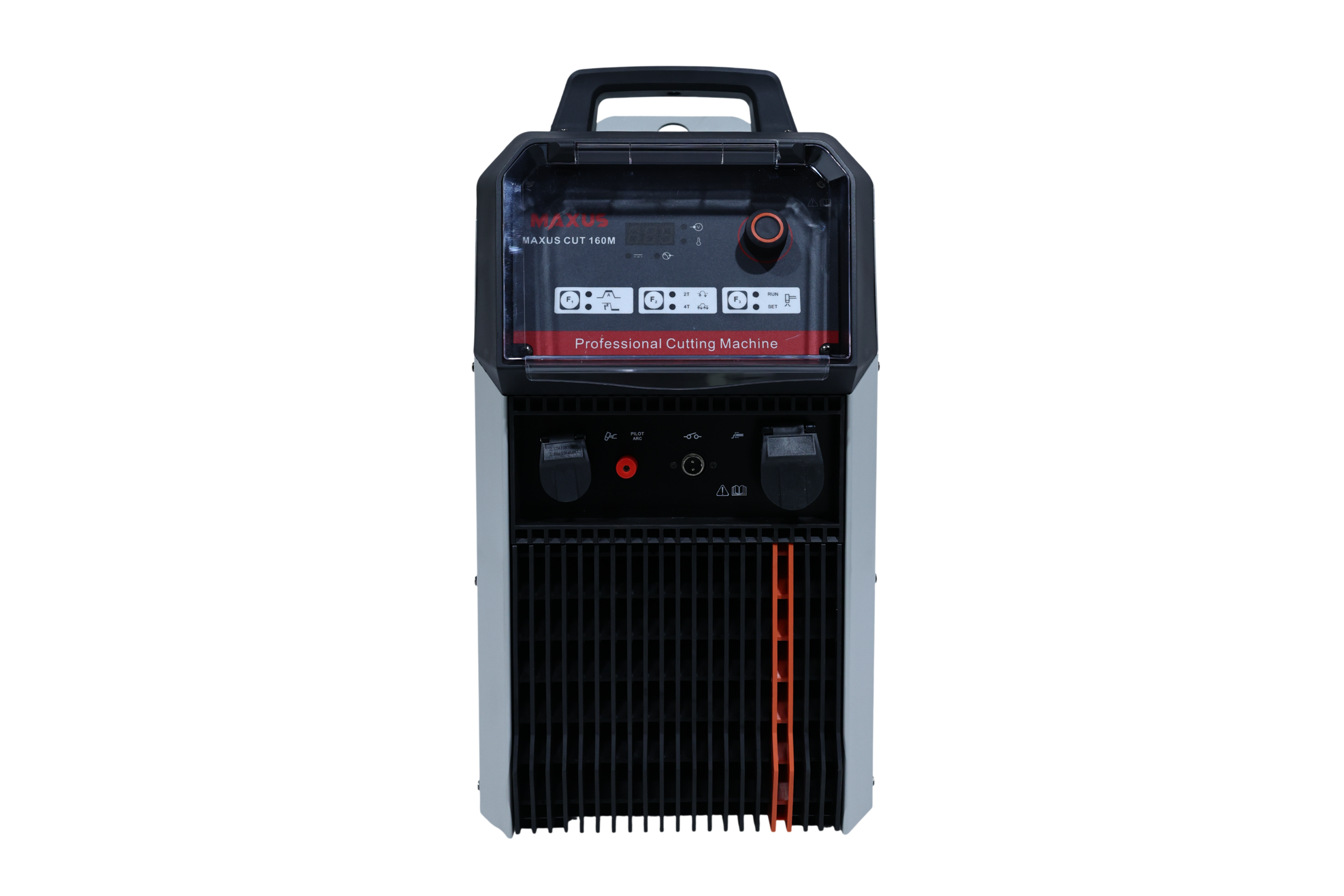

The MAXUS CUT 160M is a heavy-duty plasma cutting machine featuring 32-bit digital chip control and IGBT inverter technology for fast processing, stable plasma arc, and high-performance industrial cutting.

Technical Specifications

Input Voltage 415V 3ph Input
Current Range 30-160A Range
System Feature 70 KG Weight
Current Range Cutting Cap up to 50mm

Machine Specifications

Input Voltage 415V 3ph 50/60Hz
Rated Input Current 51A
Output Current Range 30–160A
Duty Cycle (40°C) 100%
Efficiency ≥85(%)
Insulation Class H
Protection Class P23S
Dimensions (L×W×H) 853×319×976 mm
Weight 70 KG
Cutting Thickness (MM) 1–50

Package Contents

  • 8M Torch
  • 16mm² × 3m Ground Cable
  • Regulator

Key Features

  • 32-bit digital chip control
  • Advanced IGBT inverter technology
  • Stable plasma arc performance
  • Voltage fluctuation resistance
  • High-power cutting capability
  • Clean and smooth cuts

Customer Benefits

  • Maintains stable performance under fluctuating voltage.
  • Delivers faster cutting with greater precision.
  • Produces smooth edges with minimal finishing.
  • Handles demanding industrial cutting applications.
  • Improves efficiency in continuous operations.
  • 2 year warranty included
